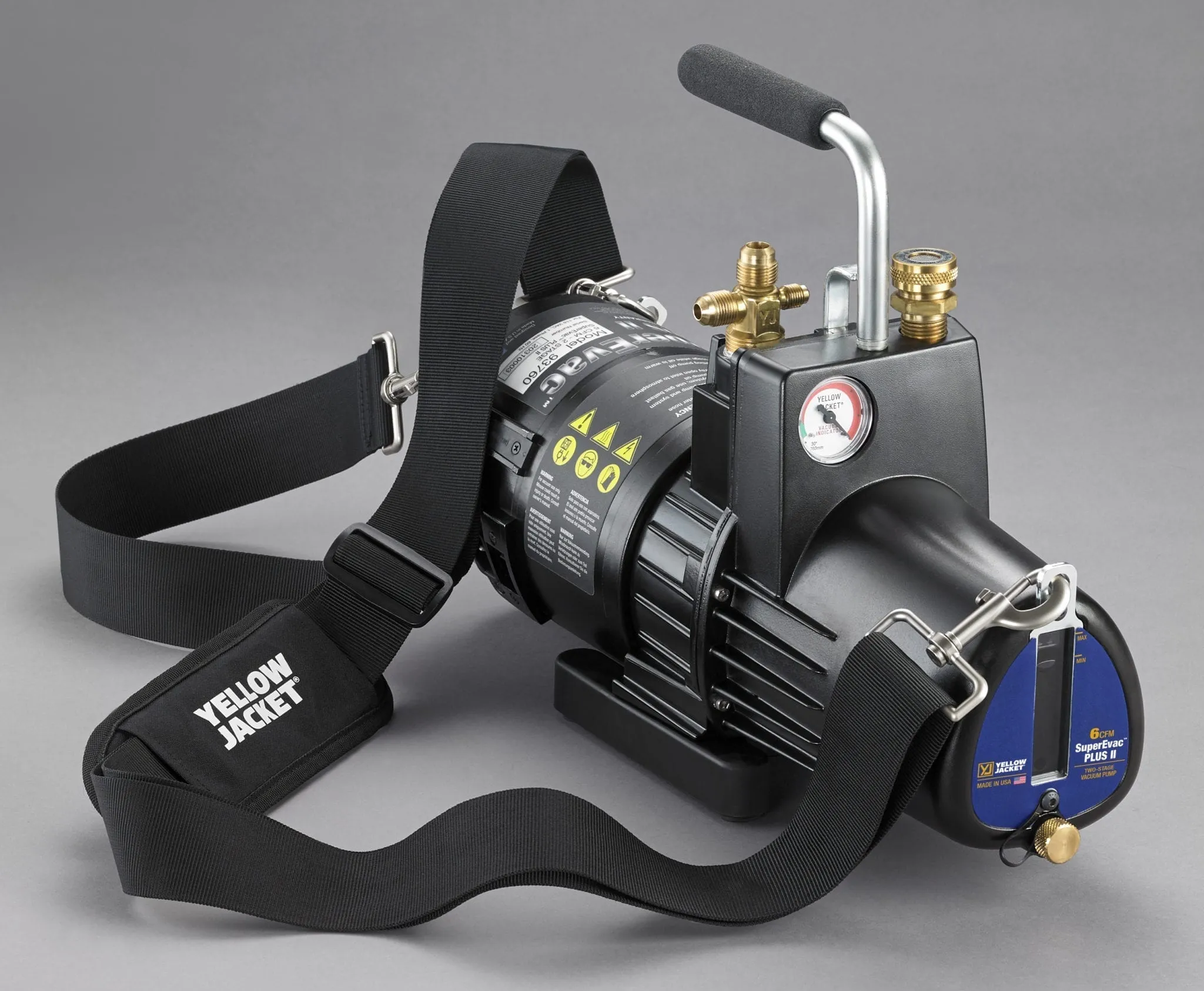

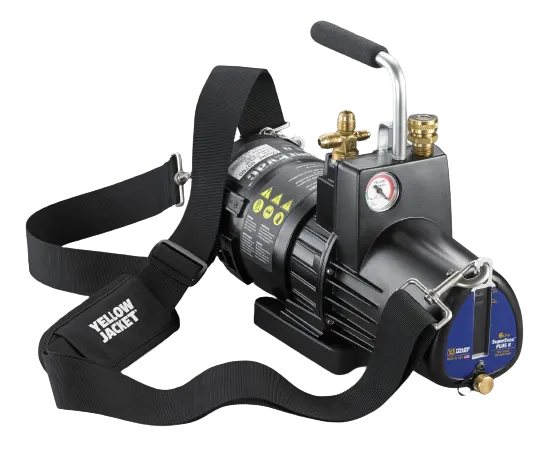

The Brushless DC (BLDC) Motor incorporated in the next-generation YELLOW JACKET^® SuperEvac^® PLUS II Vacuum Pump provides key advantages over existing AC technology vacuum pumps. High torque and high efficiency define the ultimate performance of the most reliable vacuum pump. Able to function in extremely low voltage conditions and field rated to 15 microns, the SuperEvac^® PLUS II is always ready. The easy-to-carry, lightweight design is available in 4, 6, 8 and 11 cfm models.

Features:

• Designed for use with A2L systems
• Isolation valve for oil changes without losing vacuum in the system
• The gas ballast valve keeps oil cleaner, and longer during the evacuation
• Internal intake check valve to help prevent oil backup into the system and to maintain vacuum during a power failure
• The intake filter screen keeps damaging particles from entering the pump
• Heavy-duty rotors and bearings
• Built-in vacuum gauge

Other Details:

• High Torque, High Efficiency, Brushless DC (BLDC) Motor
• Performance and Ergonomics
• Wide mouth oil reservoir port for easier, cleaner filling. Doubles as a pump exhaust – threaded to attach a garden hose for exhaust to a remote location.
• Large brass oil drain for easy access to fast oil changes
• Downward angled oil sump to remove contaminants usually trapped in other pump designs
• Non-sparking switch for A2L compliance
• Locking, low-profile IEC connector with 9’10” (3 meters) power cord to prevent accidental removal
• Heavy-duty steel handle
• Lift hook for hoisting pump to rooftops
• IPX4 Rating – resistant to water splashes from any direction
